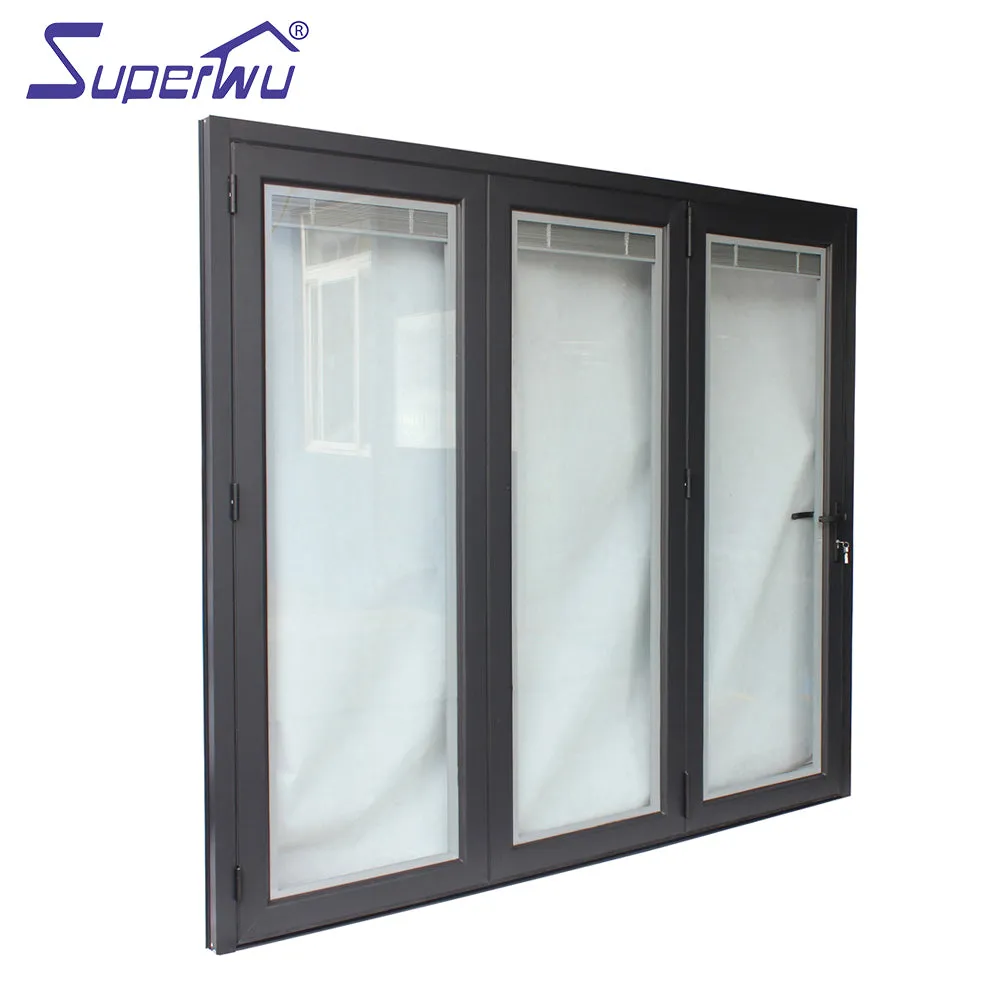

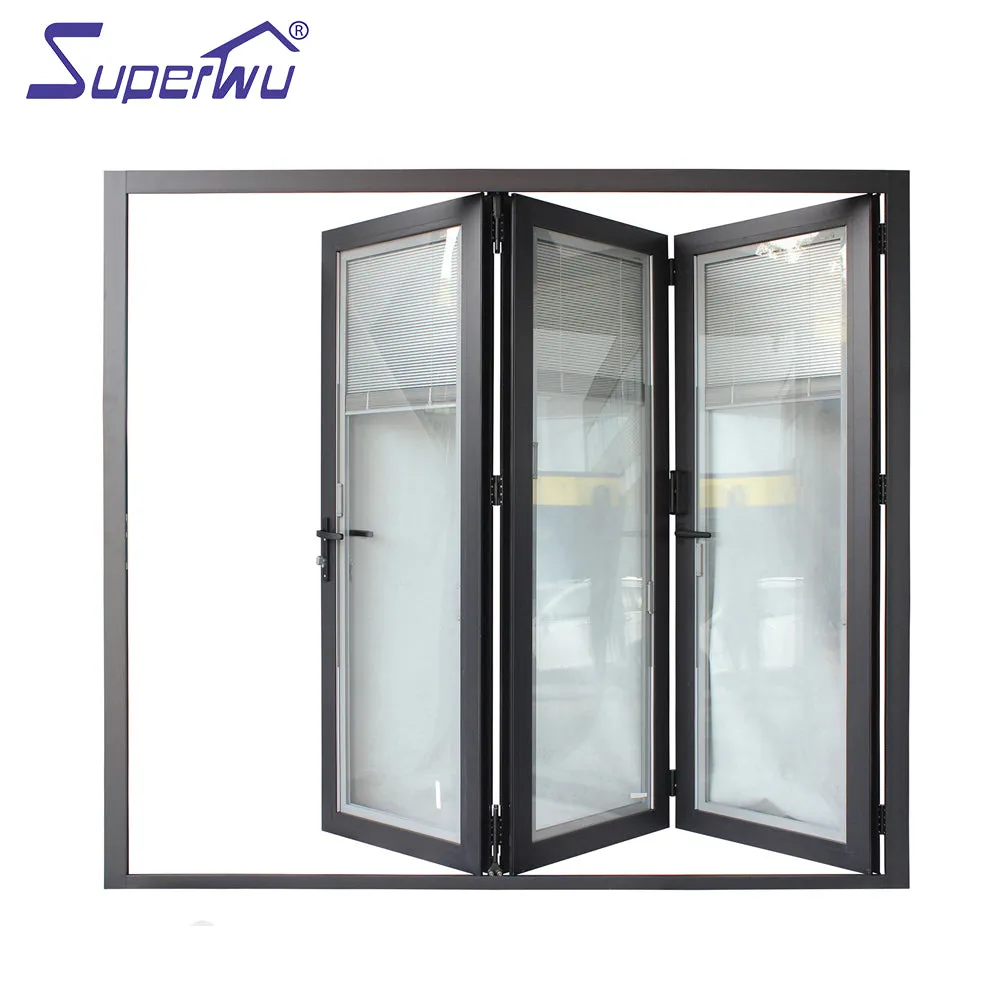

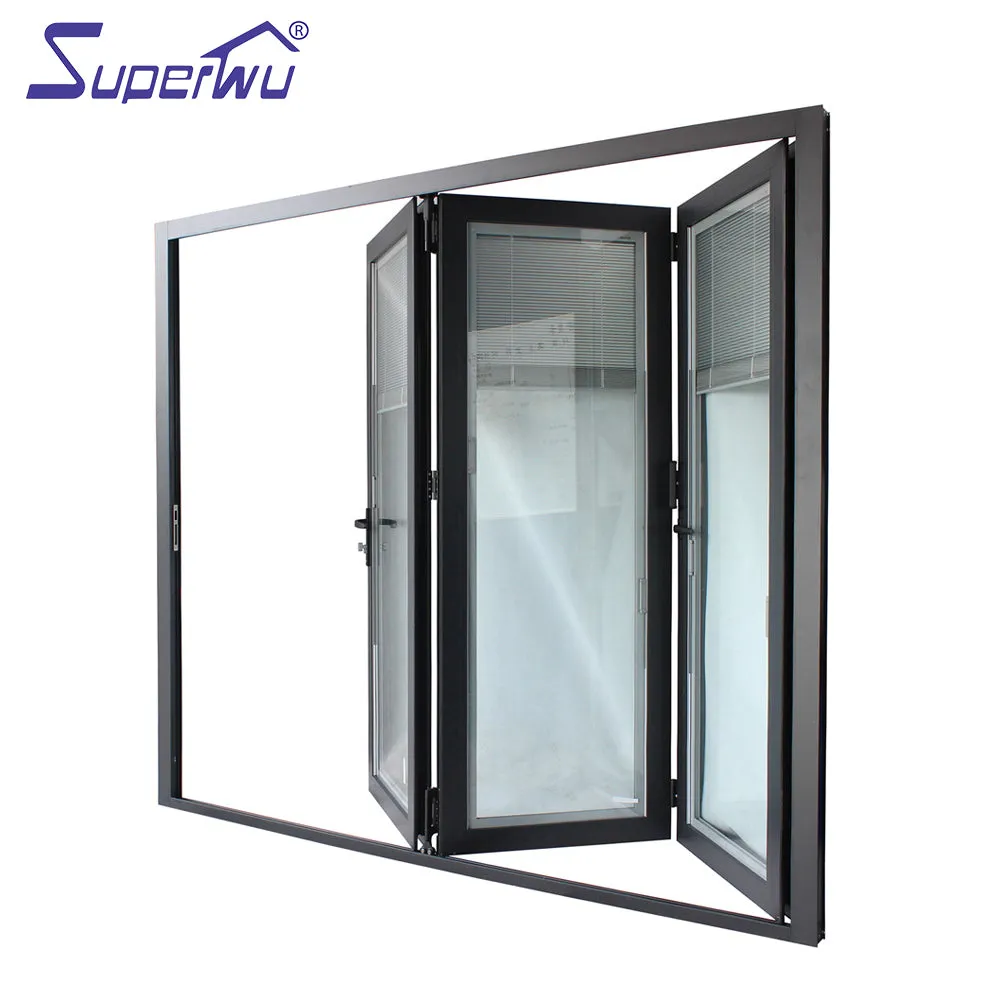

High quality 440 open style aluminum folding tempered glass door

Features

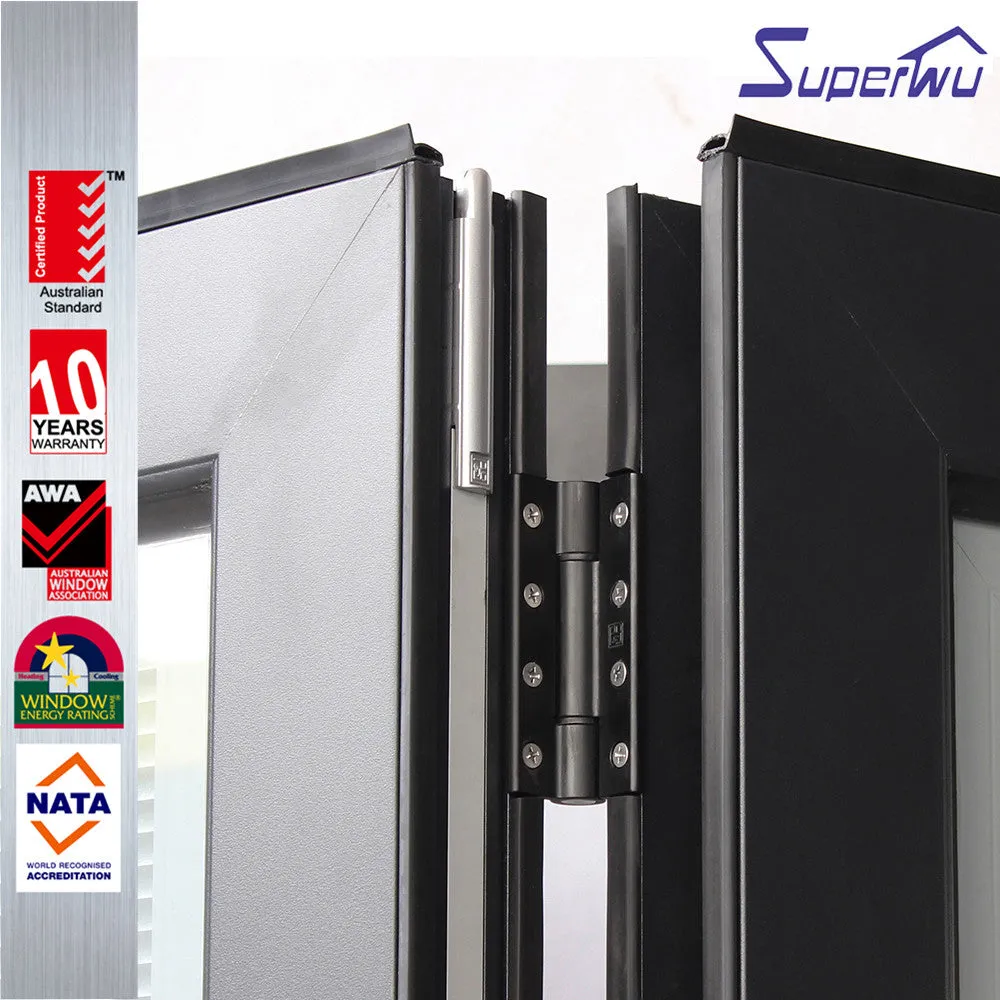

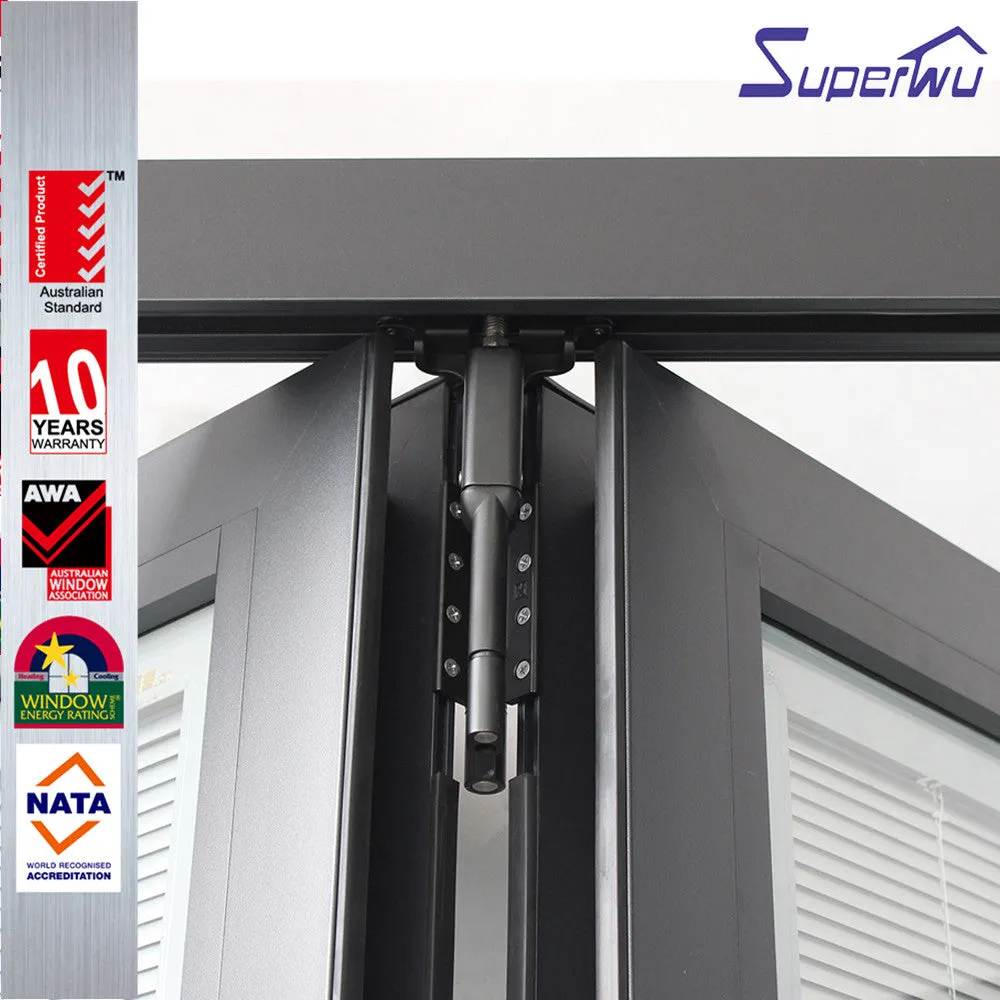

Top hung ball bearing with smooth feeling

weather seals provide a high degree of weatherproofing and acoustic performance.

retractable flyscreen install at interior or exterior

220,330,321,431,550,532,660,633,752,743 etc.,available

Heavy duty with 3m height

Glass accommodate up to6.38-19mm

Laboratory tested and NATA certified to comply with Australian Standards AS2047 &Canada Standard CSA.

Acoustic (up to a maximum STC 39) and WERS energy rated products available.

Performance

1.Wind Pressure:Serviceability design wind pressure

3000 Pa

Rating: N6/C4 (General)

2..Air Infiltration Test--Test method AS4420.4-1996

75 Pa: 0.1 L/s·m 2 ;

-75 Pa: 0.1 L/s·m 2 ;

Average air leakage rate: 0.1 L/s·m 2

Rating: Low

3.Water Penetration Test: Test--Test method AS4420.5-1996 Test Pressure: 900 Pa N6/C4(Exposed)

4.Ultimate strength test--Test method AS4420.6-1996

Test Pressure: 4500 Pa

1.The member of Australian Window Association and guarantee you 10 years warranty

2.Febricating aluminium windows & doors according to AS2047 standards

3.The member of Window Energy Rating Scheme

4.We have Australian standards workshop and audited by Australian Window Association every year

5.High quality of materials to produce qualified products

6.More than 10 years of industry experience and 10 years of exporting experience

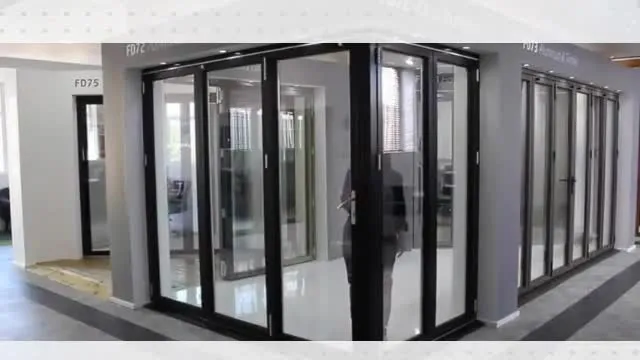

7.With showroom in Sydney and believe both our products and service will make you contented

Superwu is a specialized manufacturer of aluminium doors& windows; upvc doors& windows; Aluminum composite wood windows; aluminium aluminium handrails; shutters Located in shanghai, china.We enjoy convenient transportation. Our company occupies an area of 4000 square meter and with 80 staff and has advanced facilities of profiles cutting, welding machine and so on. Our annual production capacity is 100,000 square meter per year .

With 100% goods for exporting and our main market are for Australia, USA and Canada and so on. Our products gain wide praises abroad. Our company has won Australia Standad AS2047. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our tenet is Client first and superwu for a super life. We warmly welcome customers from at home and abroad to establish cooperation and create a bright future with us together.

Packaging Detail:

Step1.Protective tape protects frames from scratches;

Step 2.Keep windows or doors fixed on iron pallets;

Step 3.Tie up windows or doors on the iron pallets with plastic belts;

Step 4.PE films to keep away from sea water;

Step 5.Fill in the space between each two iron pallets by air bags;

Step 6.Tie up iron pallets in container with plastic belts.

Our packages will ensure the small sliding windows arrive at project jobsite in good conditions

A:We can supply the window system (including profile, hardware, accessories, glass) as well as the finished products ready for installation.

A:The price is based on buyer's specific requirement, so please provide below information to help us quote exact price to you. 1) Shop drawing / window schedule to show the window dimensions, quantity and type; 2) Frame color; 3) Type of glass and thickness (single or double or laminated or others) and color (clear, tinted, reflective, Low-E or others, with Argon or without).
